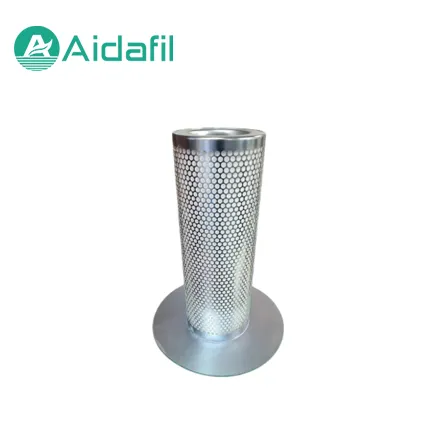

DC3084

DC3084 is a high-efficiency built-in flange-type oil-gas separator element (referred to as the "oil separator element") specially designed for industrial screw air compressors. Adopting internationally advanced coalescing filtration technology, this product is installed inside the oil-gas tank of the air compressor. Its core function is to thoroughly separate lubricating oil mist from compressed air. It can effectively reduce the residual oil content of compressed air and cut down system oil consumption. While maintaining a low pressure drop, it provides high-purity clean air protection for downstream pipelines and precision post-processing equipment.

Core Advantages

• Efficient Coalescing & Filtration: Adopting multi-layer superfine glass fiber composite filter media, it achieves a mechanical interception rate of ≥99.1% for micron and submicron oil mist, ensuring the oil content in exhaust gas is kept at an extremely low level.

• Extra-long Service Life: Under standard working conditions with original lubricating oil, the designed service life reaches 3000 to 4000 hours, effectively reducing the overall operation and maintenance costs for enterprises.

• High Pressure Resistance & Breakdown Prevention: A reinforced frame made of thickened high-strength perforated metal is installed inside the cylinder, offering excellent pressure difference resistance. Its structure remains stable without collapsing under large working airflow.

• High Temperature Resistance & Corrosion Resistance: The filter media and sealing components are specially treated for chemical resistance, enabling long-term stable operation in harsh high-temperature and high-pressure oil-gas environments up to 120°C.
